1.getting_started__3.1.shaders_uniform에서 삼각형 하나만 있는 것을 Uniform 변수를 이용하여 여러개의 삼각형으로 바꾸어서 그려보도록 한다.



https://flyduckdev.tistory.com/entry/Open-GL-LearnOpenGL-hellotriangleexercise-1-2-3 해당 앞의 포스팅을 확인해보면,

2개 이상의 삼각형을 그리기 위해 버텍스 배열을 그리고 싶은 삼각형 개수마다 새로 작성해주는 다소 번거로운 방식을 취하고 있다.

    float firstTriangle[] = {
        -0.9f, -0.5f, 0.0f,  // left
        -0.0f, -0.5f, 0.0f,  // right
        -0.45f, 0.5f, 0.0f,  // top
    };
    float secondTriangle[] = {
        0.0f, -0.5f, 0.0f,  // left
        0.9f, -0.5f, 0.0f,  // right
        0.45f, 0.5f, 0.0f   // top
    };
    unsigned int VBOs[2], VAOs[2];
    glGenVertexArrays(2, VAOs); // we can also generate multiple VAOs or buffers at the same time
    glGenBuffers(2, VBOs);
    // first triangle setup
    // --------------------
    glBindVertexArray(VAOs[0]);
    glBindBuffer(GL_ARRAY_BUFFER, VBOs[0]);
    glBufferData(GL_ARRAY_BUFFER, sizeof(firstTriangle), firstTriangle, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);	// Vertex attributes stay the same
    glEnableVertexAttribArray(0);
    // glBindVertexArray(0); // no need to unbind at all as we directly bind a different VAO the next few lines
    // second triangle setup
    // ---------------------
    glBindVertexArray(VAOs[1]);	// note that we bind to a different VAO now
    glBindBuffer(GL_ARRAY_BUFFER, VBOs[1]);	// and a different VBO
    glBufferData(GL_ARRAY_BUFFER, sizeof(secondTriangle), secondTriangle, GL_STATIC_DRAW);
출처: https://flyduckdev.tistory.com/entry/Open-GL-LearnOpenGL-hellotriangleexercise-1-2-3 [Art Software:티스토리]



따라서 Uniform 변수를 이용하여 삼각형 버텍스 좌표는 1개로 유지하는 대신 버텍스 쉐이더에서 기존 좌표에 이동 유니폼 좌표를 더해가면서 원하는 삼각형의 개수만큼 찍어내(복사해) 그려보는 방식을 취할 수 있을 것이다.



관련 docs : https://learnopengl.com/Getting-started/Shaders



LearnOpenGL - Shaders

Shaders Getting-started/Shaders As mentioned in the Hello Triangle chapter, shaders are little programs that rest on the GPU. These programs are run for each specific section of the graphics pipeline. In a basic sense, shaders are nothing more than program

learnopengl.com

우선 기존 cpp와 쉐이더 코드는 아래와 같다.

#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include <iostream>
#include <cmath>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow *window);

// settings
const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

const char *vertexShaderSource ="#version 330 core\n"
    "layout (location = 0) in vec3 aPos;\n"
    "void main()\n"
    "{\n"
    "   gl_Position = vec4(aPos, 1.0);\n"
    "}\0";

const char *fragmentShaderSource = "#version 330 core\n"
    "out vec4 FragColor;\n"
    "uniform vec4 ourColor;\n"
    "void main()\n"
    "{\n"
    "   FragColor = ourColor;\n"
    "}\n\0";

int main()
{
    // glfw: initialize and configure
    // ------------------------------
    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

#ifdef __APPLE__
    glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif

    // glfw window creation
    // --------------------
    GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
    if (window == NULL)
    {
        std::cout << "Failed to create GLFW window" << std::endl;
        glfwTerminate();
        return -1;
    }
    glfwMakeContextCurrent(window);
    glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

    // glad: load all OpenGL function pointers
    // ---------------------------------------
    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

    // build and compile our shader program
    // ------------------------------------
    // vertex shader
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);
    // check for shader compile errors
    int success;
    char infoLog[512];
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    // fragment shader
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);
    // check for shader compile errors
    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    // link shaders
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    // check for linking errors
    glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
    if (!success) {
        glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
    }
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    // set up vertex data (and buffer(s)) and configure vertex attributes
    // ------------------------------------------------------------------
    float vertices[] = {
         0.5f, -0.5f, 0.0f,  // bottom right
        -0.5f, -0.5f, 0.0f,  // bottom left
         0.0f,  0.5f, 0.0f   // top
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    // bind the Vertex Array Object first, then bind and set vertex buffer(s), and then configure vertex attributes(s).
    glBindVertexArray(VAO);

    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);

    // You can unbind the VAO afterwards so other VAO calls won't accidentally modify this VAO, but this rarely happens. Modifying other
    // VAOs requires a call to glBindVertexArray anyways so we generally don't unbind VAOs (nor VBOs) when it's not directly necessary.
    // glBindVertexArray(0);


    // bind the VAO (it was already bound, but just to demonstrate): seeing as we only have a single VAO we can
    // just bind it beforehand before rendering the respective triangle; this is another approach.
    glBindVertexArray(VAO);


    // render loop
    // -----------
    while (!glfwWindowShouldClose(window))
    {
        // input
        // -----
        processInput(window);

        // render
        // ------
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        // be sure to activate the shader before any calls to glUniform
        glUseProgram(shaderProgram);

        // update shader uniform
        double  timeValue = glfwGetTime();
        float greenValue = static_cast<float>(sin(timeValue) / 2.0 + 0.5);
        int vertexColorLocation = glGetUniformLocation(shaderProgram, "ourColor");
        glUniform4f(vertexColorLocation, 0.0f, greenValue, 0.0f, 1.0f);

        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        // glfw: swap buffers and poll IO events (keys pressed/released, mouse moved etc.)
        // -------------------------------------------------------------------------------
        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    // optional: de-allocate all resources once they've outlived their purpose:
    // ------------------------------------------------------------------------
    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteProgram(shaderProgram);

    // glfw: terminate, clearing all previously allocated GLFW resources.
    // ------------------------------------------------------------------
    glfwTerminate();
    return 0;
}

// process all input: query GLFW whether relevant keys are pressed/released this frame and react accordingly
// ---------------------------------------------------------------------------------------------------------
void processInput(GLFWwindow *window)
{
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
        glfwSetWindowShouldClose(window, true);
}

// glfw: whenever the window size changed (by OS or user resize) this callback function executes
// ---------------------------------------------------------------------------------------------
void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
    // make sure the viewport matches the new window dimensions; note that width and
    // height will be significantly larger than specified on retina displays.
    glViewport(0, 0, width, height);
}

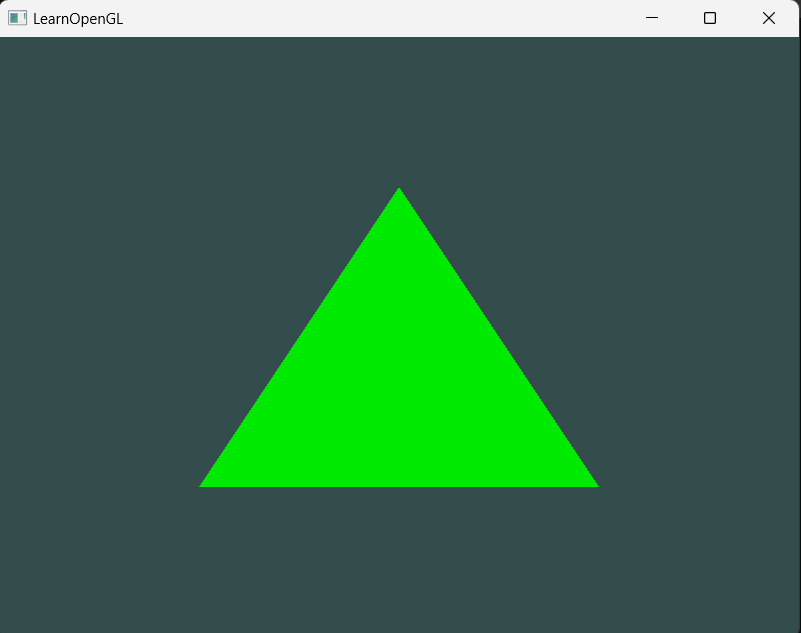

기준이 되는 삼각형을 정의하고, 이동하는 벡터를 계산해서 다른 위치에 같은 삼각형 모양 그대로를 그려내는 방식은 Open GL 에서 아주 유용하다.



가령, 원점 기준에서 x, y가 각각 0.5씩 이동한 자리에 삼각형을 만들고자 한다면,

버텍스 쉐이더에 uniform vec4 uMove를 추가해준다.

기존 버텍스 쉐이더

const char *vertexShaderSource ="#version 330 core\n"
    "layout (location = 0) in vec3 aPos;\n"
    "void main()\n"
    "{\n"
    "   gl_Position = vec4(aPos, 1.0);\n"
    "}\0";

유니폼 변수 추가된 버텍스 쉐이더

const char *vertexShaderSource ="#version 330 core\n"
    "layout (location = 0) in vec3 aPos;\n"
    "uniform vec4 uMove;\n"
    "void main()\n"
    "{\n"
    "   gl_Position = vec4(aPos, 1.0) + uMove;\n"
    "}\0";



일단 호스트 코드에서  glGetUniformLocation을 이용하여 쉐이더프로그램에 uniform variable의 이름을 알려주면, 그것의 location을 받아온다.



int vertexLocation = glGetUniformLocation(shaderProgram, "uMove");



곧이어 glUniform4f를 이용하여 vertexLocation에 원하는 값인 -0.5 -0.5를 설정해준다.
glUniform4f(vertexLocation, -0.5f, -0.5f, 0.0f, 0.0f);

이렇게 원하는 삼각형 좌표을 지정하는 것 뿐만이 아니라  glDrawArrays(GL_TRIANGLES, 0, 3);를 call해주어야 원하는 렌더링 결과를 얻을 수 있다.

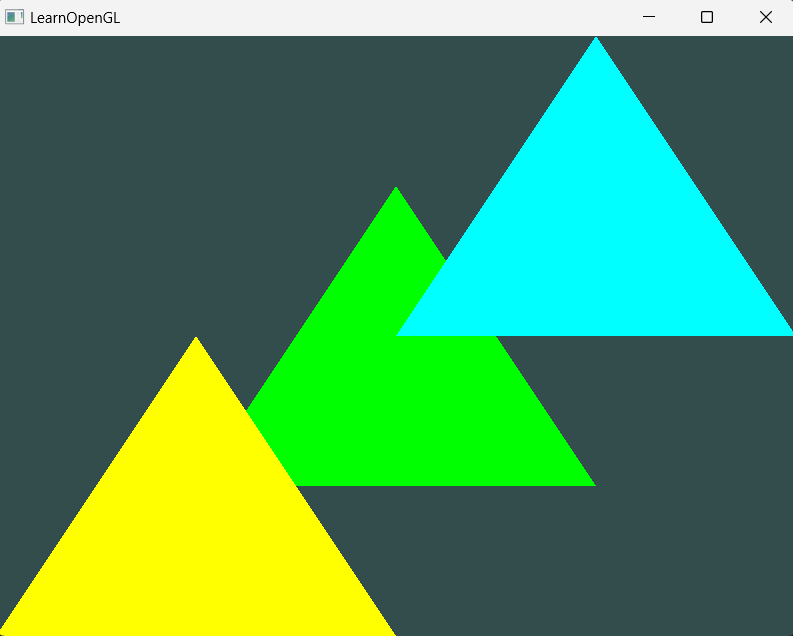

아래와 같이 while문 안에서 렌더를 3번 불러주면 3개의 다른 좌표 삼각형이 그려지게 된다.(나중에 불릴수록 위에 그려지게 됨)

    // render loop
    // -----------
    while (!glfwWindowShouldClose(window))
    {
        // input
        // -----
        processInput(window);

        // render
        // ------
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        // be sure to activate the shader before any calls to glUniform
        glUseProgram(shaderProgram);

        // update shader uniform
        double  timeValue = glfwGetTime();
        float greenValue = static_cast<float>(sin(timeValue) / 2.0 + 0.5);
        int vertexColorLocation = glGetUniformLocation(shaderProgram, "ourColor");
        glUniform4f(vertexColorLocation, 0.0f, greenValue, 0.0f, 1.0f);
        int vertexLocation = glGetUniformLocation(shaderProgram, "uMove");
        glUniform4f(vertexLocation, 0.0f, 0.0f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        glUniform4f(vertexColorLocation, greenValue, greenValue, 0.0f, 1.0f);
        glUniform4f(vertexLocation, -0.5f, -0.5f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        glUniform4f(vertexColorLocation, 0.0f, greenValue, greenValue, 1.0f);
        glUniform4f(vertexLocation, 0.5f, 0.5f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        // glfw: swap buffers and poll IO events (keys pressed/released, mouse moved etc.)
        // -------------------------------------------------------------------------------
        glfwSwapBuffers(window);
        glfwPollEvents();
    }



최종 전체 코드

#include <glad/glad.h>
#include <GLFW/glfw3.h>

#include <iostream>
#include <cmath>

void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void processInput(GLFWwindow* window);

// settings
const unsigned int SCR_WIDTH = 800;
const unsigned int SCR_HEIGHT = 600;

const char* vertexShaderSource = "#version 330 core\n"
"layout (location = 0) in vec3 aPos;\n"
"uniform vec4 uMove;\n"
"void main()\n"
"{\n"
"   gl_Position = vec4(aPos, 1.0)+ uMove;\n"
"}\0";

const char* fragmentShaderSource = "#version 330 core\n"
"out vec4 FragColor;\n"
"uniform vec4 ourColor;\n"
"void main()\n"
"{\n"
"   FragColor = ourColor;\n"
"}\n\0";

int main()
{
    // glfw: initialize and configure
    // ------------------------------
    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

#ifdef __APPLE__
    glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif

    // glfw window creation
    // --------------------
    GLFWwindow* window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "LearnOpenGL", NULL, NULL);
    if (window == NULL)
    {
        std::cout << "Failed to create GLFW window" << std::endl;
        glfwTerminate();
        return -1;
    }
    glfwMakeContextCurrent(window);
    glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);

    // glad: load all OpenGL function pointers
    // ---------------------------------------
    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

    // build and compile our shader program
    // ------------------------------------
    // vertex shader
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);
    // check for shader compile errors
    int success;
    char infoLog[512];
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    // fragment shader
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);
    // check for shader compile errors
    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
    }
    // link shaders
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    // check for linking errors
    glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
    if (!success) {
        glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
    }
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    // set up vertex data (and buffer(s)) and configure vertex attributes
    // ------------------------------------------------------------------
    float vertices[] = {
         0.5f, -0.5f, 0.0f,  // bottom right
        -0.5f, -0.5f, 0.0f,  // bottom left
         0.0f,  0.5f, 0.0f   // top
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    // bind the Vertex Array Object first, then bind and set vertex buffer(s), and then configure vertex attributes(s).
    glBindVertexArray(VAO);

    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
    glEnableVertexAttribArray(0);

    // You can unbind the VAO afterwards so other VAO calls won't accidentally modify this VAO, but this rarely happens. Modifying other
    // VAOs requires a call to glBindVertexArray anyways so we generally don't unbind VAOs (nor VBOs) when it's not directly necessary.
    // glBindVertexArray(0);


    // bind the VAO (it was already bound, but just to demonstrate): seeing as we only have a single VAO we can
    // just bind it beforehand before rendering the respective triangle; this is another approach.
    glBindVertexArray(VAO);


    // render loop
    // -----------
    while (!glfwWindowShouldClose(window))
    {
        // input
        // -----
        processInput(window);

        // render
        // ------
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        // be sure to activate the shader before any calls to glUniform
        glUseProgram(shaderProgram);

        // update shader uniform
        double  timeValue = glfwGetTime();
        float greenValue = static_cast<float>(sin(timeValue) / 2.0 + 0.5);
        int vertexColorLocation = glGetUniformLocation(shaderProgram, "ourColor");
        glUniform4f(vertexColorLocation, 0.0f, greenValue, 0.0f, 1.0f);
        int vertexLocation = glGetUniformLocation(shaderProgram, "uMove");
        glUniform4f(vertexLocation, 0.0f, 0.0f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        glUniform4f(vertexColorLocation, greenValue, greenValue, 0.0f, 1.0f);
        glUniform4f(vertexLocation, -0.5f, -0.5f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        glUniform4f(vertexColorLocation, 0.0f, greenValue, greenValue, 1.0f);
        glUniform4f(vertexLocation, 0.5f, 0.5f, 0.0f, 0.0f);
        // render the triangle
        glDrawArrays(GL_TRIANGLES, 0, 3);

        // glfw: swap buffers and poll IO events (keys pressed/released, mouse moved etc.)
        // -------------------------------------------------------------------------------
        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    // optional: de-allocate all resources once they've outlived their purpose:
    // ------------------------------------------------------------------------
    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteProgram(shaderProgram);

    // glfw: terminate, clearing all previously allocated GLFW resources.
    // ------------------------------------------------------------------
    glfwTerminate();
    return 0;
}

// process all input: query GLFW whether relevant keys are pressed/released this frame and react accordingly
// ---------------------------------------------------------------------------------------------------------
void processInput(GLFWwindow* window)
{
    if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)
        glfwSetWindowShouldClose(window, true);
}

// glfw: whenever the window size changed (by OS or user resize) this callback function executes
// ---------------------------------------------------------------------------------------------
void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{
    // make sure the viewport matches the new window dimensions; note that width and
    // height will be significantly larger than specified on retina displays.
    glViewport(0, 0, width, height);
}
저작자표시 비영리 변경금지

'Open GL' 카테고리의 다른 글

[Open GL] 2D삼각형에 이동, 회전 애니메이션 적용 및 원점 리스폰  (0) 2023.12.02
[Open GL] LearnOpenGL hello_triangle_exercise 1, 2, 3  (0) 2023.11.21
[GLSL] 쉐이더 프로세서의 인풋,아웃풋 레지스터  (0) 2023.11.17
[Open GL] Tutorial 4 : A Colored Cube 예제풀이  (1) 2023.10.30
[Open GL] opengl-tutorial matrices  (1) 2023.10.28
'Open GL' Related Articles more
