[Unreal, VR] Custom VR Pawn Blueprint

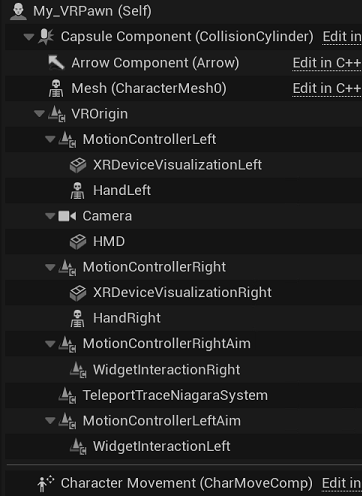

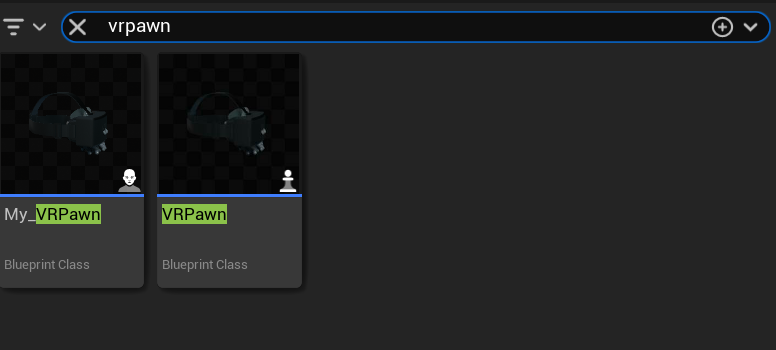

우선 기본 vr pawn을 복제해준다.

복제한 My_VRPawn에다 여러가지 vr 플레이어 기능들을 커스텀해서 반영하기 위함이다.

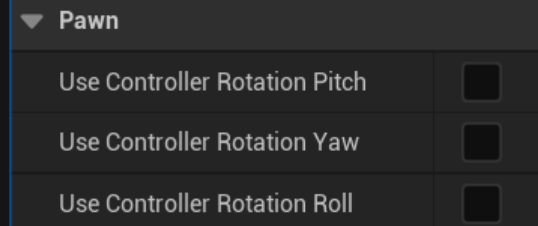

! 부모 클래스를 캐릭터형으로 바꾸어준다!



기본 값

왼쪽, 오른쪽 엄지 조이스틱으로 이동, 회전

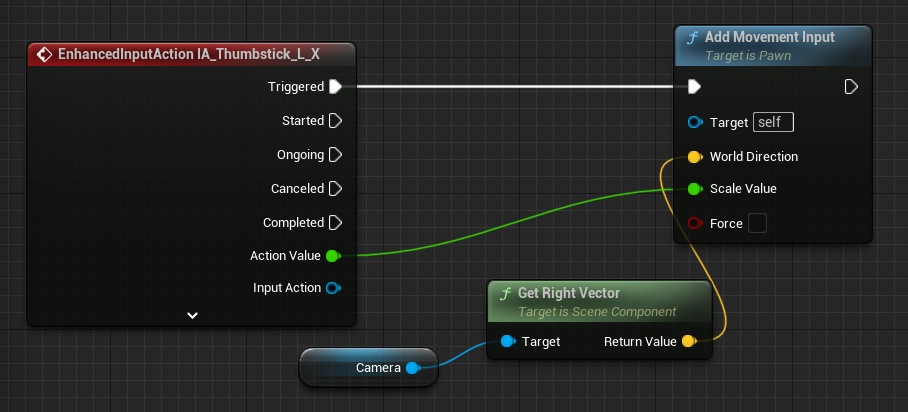

왼쪽 엄지 조이스틱으로는 이동을 결정하게 해준다.

get right vector

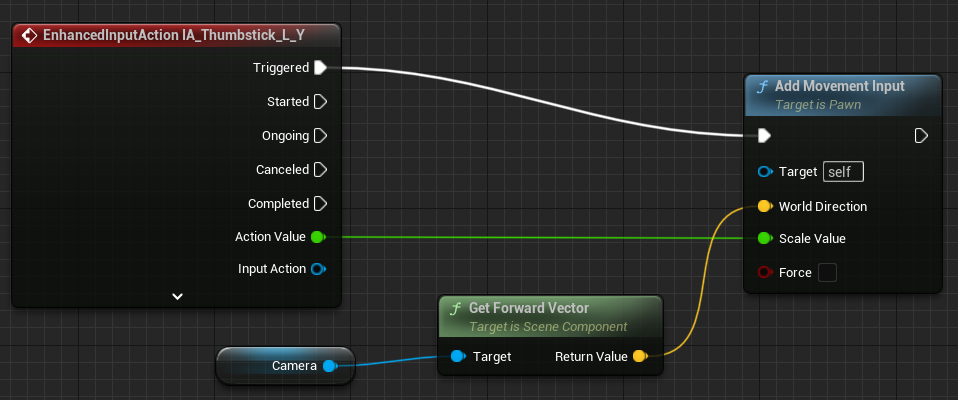

get forward vector

오른쪽 엄지 조이스틱으로는 회전을 담당하게 설정해준다.

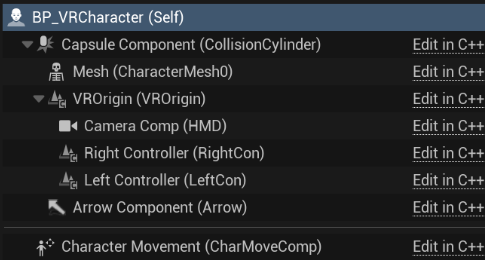

위의 panw 구조를 직접 캐릭터 c++로 작성하고 싶다면 아래의 기본 틀을 가져가야 한다. VR Origin 구조를 캡슐 컴포넌트 아래에 만들어주고, 카메라와 왼손 오른손 컨트롤러를 그 아래에다가 계층이동 시켜주는 것이 핵심이다.

VRCharacter.h

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "Camera/CameraComponent.h"
#include "VRCharacter.generated.h"

UCLASS()
class SESACVR_API AVRCharacter : public ACharacter
{
	GENERATED_BODY()

public:
	// Sets default values for this character's properties
	AVRCharacter();

protected:
	virtual void BeginPlay() override;

	UPROPERTY(EditAnywhere, Category = "Controller")
	class UMotionControllerComponent* LeftController;

	UPROPERTY(EditAnywhere, Category = "Controller")
	class UMotionControllerComponent* RightController;

	UPROPERTY(EditAnywhere, Category = "Input")
	class UInputMappingContext* PlayerMappingContext;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "HMD")
	class UCameraComponent* CameraComp;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "HMD")
	class USceneComponent* VROrigin;

protected:
	UPROPERTY(EditAnywhere, Category = "Input")
	class UInputAction* IA_LeftThumbstick;
	UPROPERTY(EditAnywhere, Category = "Input")
	class UInputAction* IA_LeftTrigger;
	UPROPERTY(EditAnywhere, Category = "Input")
	class UInputAction* IA_RightThumbstick;

public:
	virtual void Tick(float DeltaTime) override;

	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

	UFUNCTION()
	void Func1(const FInputActionValue& Value);
	UFUNCTION()
	void Func2(const FInputActionValue& Value);
	UFUNCTION()
	void Func3(const FInputActionValue& Value);
};



VRCharacter.cpp

// Fill out your copyright notice in the Description page of Project Settings.


#include "VRCharacter.h"
#include "MotionControllerComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/CapsuleComponent.h"
#include "EnhancedInputSubsystems.h"
#include "EnhancedInputComponent.h"
#include "Components/SceneComponent.h"
#include "Components/ArrowComponent.h"

// Sets default values
AVRCharacter::AVRCharacter()
{
 	// Set this character to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;
	SetRootComponent(GetCapsuleComponent());
	//GetCapsuleComponent()->SetCapsuleSize(1.f, 1.f);

	GetMesh()->SetupAttachment(RootComponent);
	GetArrowComponent()->SetupAttachment(RootComponent);


	VROrigin = CreateDefaultSubobject<USceneComponent>(TEXT("VROrigin"));
	VROrigin->SetupAttachment(RootComponent);

	LeftController = CreateDefaultSubobject<UMotionControllerComponent>(TEXT("LeftCon"));
	LeftController->MotionSource = FName("Left");
	LeftController->SetupAttachment(VROrigin);

	RightController = CreateDefaultSubobject<UMotionControllerComponent>(TEXT("RightCon"));
	RightController->MotionSource = FName("Right");
	RightController->SetupAttachment(VROrigin);


	CameraComp = CreateDefaultSubobject<UCameraComponent>(TEXT("HMD"));
	CameraComp->SetupAttachment(VROrigin);
}

// Called when the game starts or when spawned
void AVRCharacter::BeginPlay()
{
	Super::BeginPlay();
	if (APlayerController* PlayerController = Cast<APlayerController>(GetController()))
	{
		if (UEnhancedInputLocalPlayerSubsystem* Subsystem
			= ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer()))
		{
			Subsystem->AddMappingContext(PlayerMappingContext, 0);
		}
	}
}

// Called every frame
void AVRCharacter::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

// Called to bind functionality to input
void AVRCharacter::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{

	Super::SetupPlayerInputComponent(PlayerInputComponent);
	if (UEnhancedInputComponent* EnhancedInputComponent = CastChecked<UEnhancedInputComponent>(PlayerInputComponent))
	{
		//EnhancedInputComponent->BindAction(IA_LeftThumbstick, ETriggerEvent::Triggered, this, &AVRCharacter::Func1);
		//EnhancedInputComponent->BindAction(IA_LeftTrigger, ETriggerEvent::Triggered, this, &AVRCharacter::Func2);
		//EnhancedInputComponent->BindAction(IA_RightThumbstick, ETriggerEvent::Triggered, this, &AVRCharacter::Func3);
	}
}

void AVRCharacter::Func1(const FInputActionValue& Value)
{
	GEngine->AddOnScreenDebugMessage(-1, 5.0f, FColor::Green, TEXT("LeftThumbstick"));
}

void AVRCharacter::Func2(const FInputActionValue& Value)
{
	GEngine->AddOnScreenDebugMessage(-1, 5.0f, FColor::Green, TEXT("LeftTrigger"));
}

void AVRCharacter::Func3(const FInputActionValue& Value)
{
	GEngine->AddOnScreenDebugMessage(-1, 5.0f, FColor::Green, TEXT("RightThumbstick"));
}
